Metal-Wrapped Stainless Steel Corrugated Gas Hose ZLR-14: Flexible, Secure, and Durable Gas Appliance Connections

Reliable gas connections are essential in residential, commercial, and light industrial installations. A gas hose must do more than transfer fuel from one point to another. It must accommodate movement, resist pressure and vibration, remain stable in demanding environments, and maintain a secure seal throughout its service life. The Metal-Wrapped Stainless Steel Corrugated Gas Hose ZLR-14 is designed to address these requirements through a combination of stainless steel materials, corrugated construction, protective layers, and carefully engineered connection components.

The ZLR-14 belongs to the category of metal-wrapped hoses for gas appliance connections. It combines a stainless steel corrugated bellows with a stainless steel mesh, stainless steel sleeve, PVC coating, flange connector, nut, and flat gasket. Each component serves a specific purpose. The corrugated inner pipe provides flexibility, the braided metal layer improves mechanical protection, the outer coating helps shield the assembly from environmental exposure, and the connection components support a tight and dependable installation.

With an outside diameter of 16 mm, a DN10 specification, and available lengths from 30 cm to 200 cm, the ZLR-14 can be adapted to many gas appliance layouts. Its compact structure is particularly useful where appliances must be connected in restricted spaces or where a rigid pipe would be difficult to align. At the same time, the metal construction provides a level of strength and resistance that is not typically associated with ordinary flexible polymer hoses.

This article examines the design, performance advantages, manufacturing strengths, installation considerations, quality systems, and application value of the ZLR-14. It also explains how the product compares with alternative gas connection solutions and why manufacturing capabilities are important when selecting a dependable hose supplier.

1. Product Overview

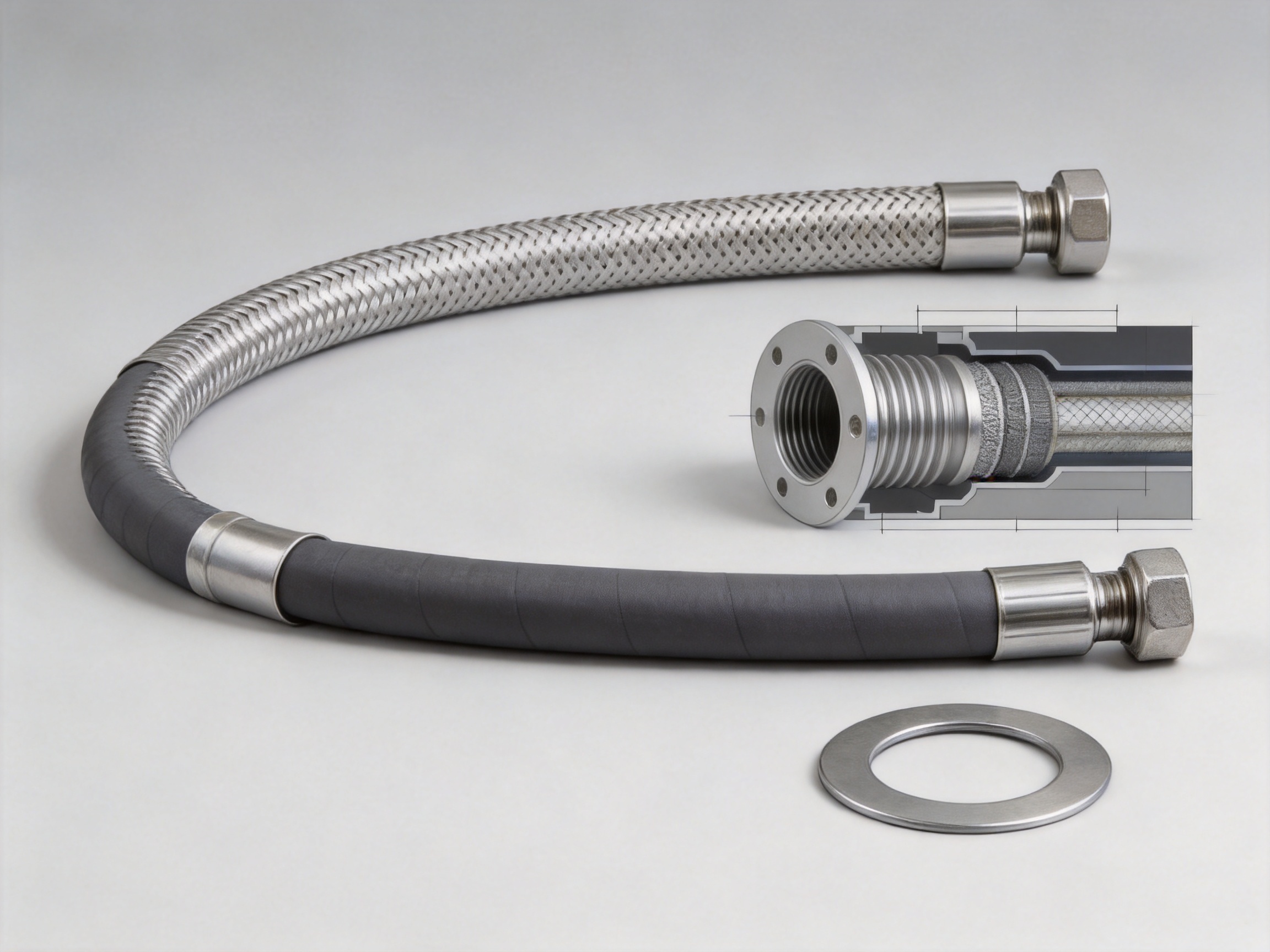

The Metal-Wrapped Stainless Steel Corrugated Gas Hose ZLR-14 is engineered for gas appliance connection systems that require both flexibility and structural protection. Its main working element is a stainless steel corrugated pipe. Instead of using a smooth, rigid tube, the pipe incorporates a series of formed waves, or corrugations. These waves allow the hose to bend while distributing movement across the length of the assembly.

A stainless steel mesh is wrapped around the corrugated pipe. This mesh reinforces the hose and helps protect the bellows from external mechanical effects. It can reduce the impact of accidental contact, moderate external pressure, and repeated vibration. The mesh also functions as a shielding layer, helping the corrugated pipe maintain its form during service.

The assembly includes a PVC coating that provides an additional protective surface. Depending on the installation environment, this coating can help reduce contact between the metal assembly and surrounding surfaces. It may also help limit exposure to dirt, moisture, and minor abrasion. The coating is not a replacement for correct installation or environmental assessment, but it is an important part of the multilayer construction.

At the connection ends, the ZLR-14 uses components including a flat gasket, G1/2 nut, flange connector, and stainless steel sleeve. These parts are designed to work together as a connection system rather than as isolated components. The gasket supports sealing, the nut applies fastening force, the flange connector provides the interface with the appliance or pipework, and the sleeve helps reinforce the hose end.

The listed model specification is RLB-ZH-S-10X300, under product model ZLR-14. The nominal size is DN10, the outside diameter is 16 mm, and the standard length range is 30 cm to 200 cm. Actual connection compatibility must always be checked against the appliance outlet, installation standard, thread type, pressure requirements, and local regulations.

2. Construction and Component Function

2.1 Stainless Steel Corrugated Bellows

The corrugated bellows is the primary flexible pressure-carrying element. Its wave-shaped profile allows the hose to bend without requiring the entire tube wall to deform in one concentrated location. This is valuable in gas appliance installations because connection points are not always perfectly aligned. An installer may need to route the hose around a cabinet edge, position an appliance at a slight angle, or allow room for maintenance and cleaning.

Compared with a straight rigid tube, a corrugated bellows can absorb controlled movement and simplify alignment. It can also reduce the need for multiple rigid fittings in compact spaces. Fewer connection transitions may help simplify the installation, although every connection must still be correctly selected and tested.

Stainless steel is used because it offers a useful combination of corrosion resistance, mechanical strength, and temperature capability. The exact performance depends on the stainless steel grade, forming method, wall thickness, working pressure, and service environment. Nevertheless, stainless steel is widely used for demanding fluid and gas connection applications because it is more resistant to many common environmental influences than unprotected carbon steel.

2.2 Stainless Steel Braided Mesh

The stainless steel mesh is wrapped around the bellows to reinforce the flexible tube. Corrugated pipes are flexible by design, but they benefit from external support when exposed to vibration, contact, movement, or installation handling. The mesh helps distribute external forces over a wider area and reduces the likelihood that a localized force will directly damage the bellows.

The braided structure also contributes to dimensional stability. When a hose is bent or subjected to vibration, the mesh can help control excessive deformation. This is particularly useful near appliances that generate movement or vibration during operation. The mesh is not intended to replace proper support, correct bend limits, or a suitable installation route, but it provides an additional layer of mechanical protection.

In comparison with a flexible hose that relies only on a thin polymer wall, the metal-wrapped design offers a more robust external structure. It is better suited to applications where the hose may encounter nearby metal panels, cabinet components, tools, or incidental contact during installation and servicing.

2.3 PVC Protective Coating

The PVC coating creates a protective outer layer over the metal assembly. It can help reduce surface abrasion and provide separation between the stainless steel mesh and adjacent materials. This is useful when a hose passes through a cabinet or operates near painted panels, flooring, or other surfaces that could otherwise rub against the metal braid.

The coating also supports easier visual inspection and handling. A coated hose can be easier to clean and identify during installation than an exposed braided assembly. However, installers should avoid excessive bending, crushing, cutting, or exposure to conditions beyond the coating’s rated capabilities. The hose should be installed away from sharp edges, intense heat sources, and corrosive chemicals unless the application has been specifically evaluated.

2.4 Flange Connector and G1/2 Nut

The connection system is a critical part of any gas hose. The ZLR-14 uses a flange connector and G1/2 nut to provide a defined interface with compatible gas appliances, valves, pipes, or other connection points. A properly machined connection helps ensure that the sealing surfaces meet evenly and that fastening force is applied consistently.

The use of a defined thread and connector arrangement makes the hose easier to specify and replace. It also helps installers identify the required mating components before beginning work. Compatibility should not be assumed solely from nominal size. Thread form, sealing method, connector orientation, appliance requirements, and national installation standards must all be verified.

2.5 Flat Gasket and Stainless Steel Sleeve

The flat gasket supports leak prevention by filling microscopic surface irregularities between the mating connection faces. A gasket must be correctly sized, clean, undamaged, and suitable for the intended gas service. It should not be reused if it has been compressed, cut, hardened, or otherwise compromised.

The stainless steel sleeve helps reinforce the hose end and supports the transition between the flexible body and the connector assembly. This is an important structural region because bending forces and installation loads can concentrate near the connection. A reinforced end can improve the overall integrity of the assembly when the hose is properly installed and not subjected to excessive side loading.

Component	Material or configuration	Primary function	Installation or performance value
Corrugated bellows	Stainless steel, wave-formed construction	Provides flexible gas passage and controlled bending	Supports alignment in restricted or complex installation spaces
Braided mesh	Stainless steel	Reinforces and shields the bellows	Improves resistance to vibration, external pressure, and contact
Protective coating	PVC	Provides an outer protective surface	Helps limit abrasion and contact with surrounding materials
Flange connector	Precision-machined connection component	Creates the interface with compatible equipment	Supports a stable, correctly aligned connection
G1/2 nut	Metal fastening component	Applies fastening force to the connection	Allows connection to compatible threaded interfaces
Flat gasket	Sealing element	Fills surface irregularities at the joint	Supports leak-resistant performance
Stainless steel sleeve	Stainless steel reinforcement	Supports the hose end and connector transition	Helps protect the end region from mechanical stress

3. Main Advantages of the ZLR-14

3.1 Flexibility for Complex Installations

The most immediate advantage of the ZLR-14 is its flexibility. Gas appliances are frequently installed in kitchens, utility rooms, workshops, commercial preparation areas, and equipment compartments where space is limited. Rigid pipework may require exact positioning, additional elbows, or more extensive modification to surrounding structures.

The corrugated bellows allows the hose to follow a practical route while maintaining a compact connection. This can reduce installation difficulty and make it easier to position the appliance correctly. The hose is available in lengths from 30 cm to 200 cm, allowing users to select a suitable size rather than forcing an excessively short or unnecessarily long connection into the installation.

Flexibility also assists maintenance. An appliance may need to be moved temporarily for cleaning, inspection, or repair. A correctly selected flexible connection can provide limited movement without requiring the entire gas line to be dismantled. Any movement must remain within the manufacturer’s recommended limits, and the hose must never be stretched, twisted, or used as a permanent support for the appliance.

3.2 Resistance to Vibration and External Pressure

Gas appliances and connected equipment can generate vibration during operation. Pumps, burners, fans, valves, compressors, and other nearby equipment may transmit movement through the installation. A rigid connection can transfer these forces directly to fittings or appliance inlets. The flexible corrugated structure helps absorb and distribute controlled movement.

The stainless steel mesh adds another level of protection. It helps reinforce the hose against external pressure and accidental contact. This is an important distinction between a metal-wrapped hose and a basic unreinforced flexible tube. The ZLR-14 is designed as a multilayer assembly in which the inner bellows carries the gas while the outer metal layer contributes mechanical support.

Proper routing remains essential. A hose should not be placed beneath heavy equipment, pulled sharply around a corner, or compressed between rigid surfaces. The braided layer improves resistance, but no flexible product should be treated as indestructible. The best performance is achieved when the product’s structural advantages are combined with sound installation practice.

3.3 Corrosion Resistance

Moisture, condensation, cleaning agents, salts, and changing temperatures can affect gas connection components. Stainless steel construction helps the ZLR-14 resist many common forms of corrosion. This is especially valuable in kitchens, utility spaces, and industrial environments where the hose may be exposed to humidity or occasional splashes.

Corrosion resistance is influenced by material grade, surface condition, contaminants, temperature, and cleaning procedures. The stainless steel mesh and bellows should still be inspected periodically. Strong chemicals, trapped moisture, chlorine-rich compounds, or dissimilar-metal contact can create conditions that require additional evaluation. The PVC coating can provide supplementary surface protection, but it should not conceal damage or delay inspection.

3.4 Leak-Resistant Connection Design

A gas hose is only as reliable as its connection points. The ZLR-14 incorporates a flat gasket, flange connector, nut, and machined components intended to create a secure joint. The connection design helps distribute fastening force over the sealing interface and supports a stable attachment to compatible equipment.

Leak-resistant performance depends on several factors: clean sealing surfaces, correct gasket placement, compatible threads, suitable tightening, proper alignment, and post-installation testing. The hose itself may be manufactured accurately, but incorrect assembly can compromise the entire system. For this reason, the ZLR-14 should be installed by qualified personnel in accordance with applicable codes and appliance instructions.

3.5 Compact Outside Diameter

With an outside diameter of 16 mm, the ZLR-14 offers a compact profile for many appliance connection layouts. A smaller external dimension can be useful in cabinets, behind appliances, and along narrow routing paths. It may also reduce interference with adjacent components.

Compact design does not mean that the hose can be bent without limits. The minimum bend radius, allowable movement, pressure rating, and temperature range should be confirmed from the applicable product documentation. The hose should be routed with smooth curves rather than sharp folds, and the ends should remain aligned with the connection points.

4. Comparison with Alternative Gas Connection Solutions

4.1 Compared with Rigid Metal Pipe

Rigid metal pipe provides a strong and established gas distribution method, particularly for fixed building systems. However, it requires accurate measurement, cutting, threading, joining, and support. Changes in appliance position can require additional work, and multiple elbows or fittings may be necessary in confined areas.

The ZLR-14 offers a more adaptable connection between an existing gas outlet and an appliance. Its flexibility can simplify final alignment and reduce the number of directional fittings in a short connection. It is not intended to replace all rigid pipework. Instead, it is especially valuable where a flexible appliance connection is permitted and where movement, access, or spatial constraints make a rigid link less practical.

4.2 Compared with Basic Polymer Hose

Polymer hoses can be lightweight and flexible, but their performance may be more sensitive to heat, ultraviolet exposure, aging, abrasion, chemical contact, and mechanical damage. The actual suitability depends on the polymer type and certification. A metal-wrapped stainless steel corrugated hose provides a different balance of properties, emphasizing mechanical reinforcement and metal-based durability.

The stainless steel bellows and braided mesh can provide stronger protection against external pressure and incidental contact than an unreinforced polymer tube. The PVC coating adds a protective outer surface while retaining the structural benefits of the metal layers. For installations where mechanical protection is a priority, the ZLR-14 can offer a robust alternative to simpler flexible hoses.

4.3 Compared with Unprotected Corrugated Tube

An unprotected corrugated tube may provide flexibility but can be more exposed to impact, abrasion, and deformation. The ZLR-14’s stainless steel mesh helps shield the bellows and improves the assembly’s resistance to external forces. Its sleeve and connector arrangement also provide additional support at the ends, where stress can otherwise become concentrated.

The metal-wrapped configuration may be particularly advantageous in appliance compartments and service areas where the hose can encounter nearby panels or tools. The protective coating further separates the assembly from its surroundings. These layers create a more complete connection solution than a bare flexible tube alone.

5. Manufacturing Strengths and Production Capabilities

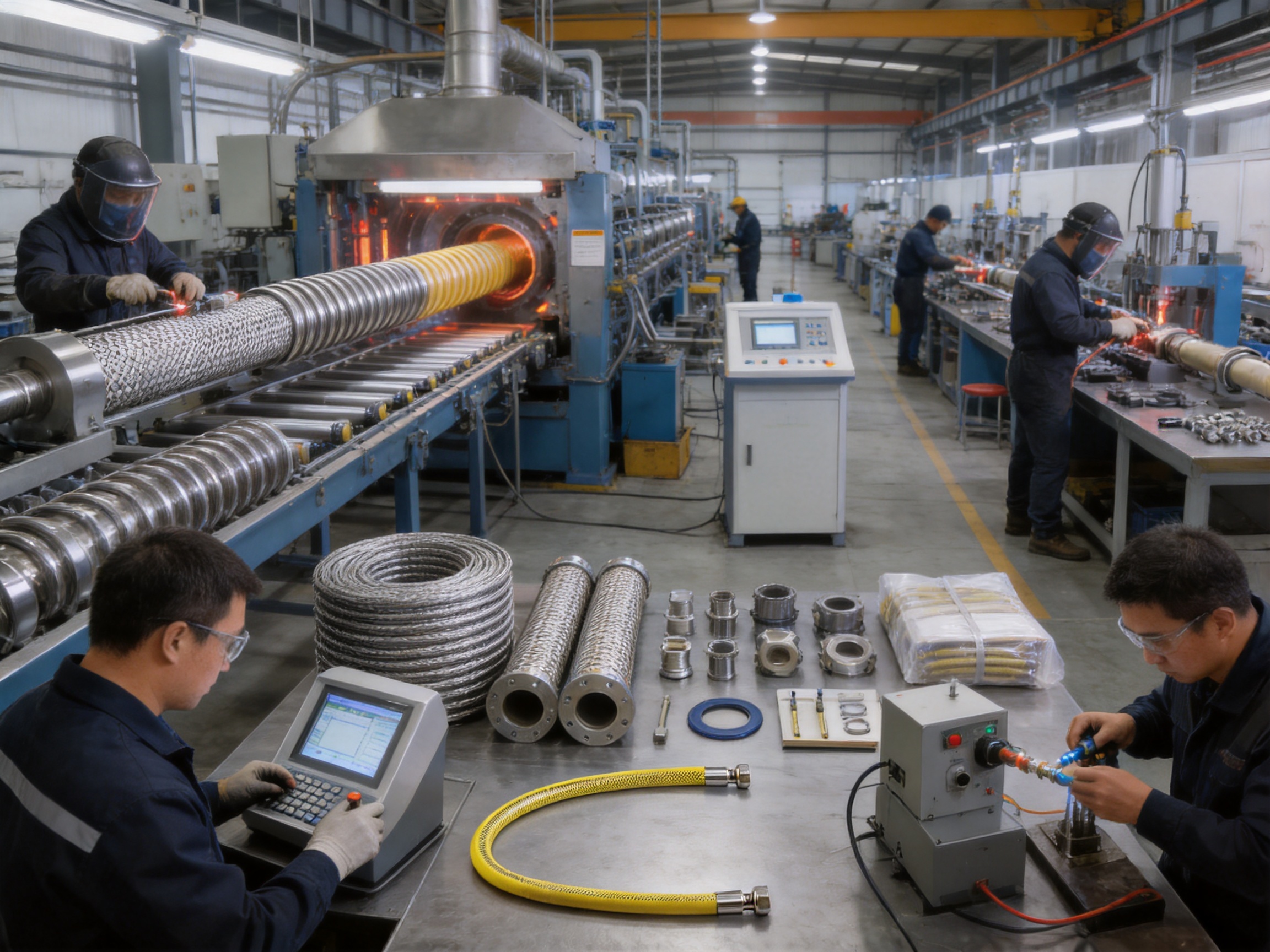

The quality of a gas hose depends not only on its design but also on the consistency of its manufacturing process. Zhejiang Zhenlong Energy Equipment Technology Co., Ltd. integrates research, development, manufacturing, processing, and trade. This integrated structure allows product design, production planning, component processing, assembly, and customer service to be coordinated within one organization.

The company operates a factory covering approximately 40 acres, with a stated factory building area of about 30,000 square meters. Its production infrastructure includes 30 welding and forming production lines. These lines support the fabrication of metal hose components and other energy equipment products. A broad production base can help improve capacity planning, reduce dependence on isolated subcontracting stages, and support more consistent manufacturing control.

5.1 Welding and Forming

Corrugated metal hose production requires controlled forming and reliable joining. The bellows must be shaped accurately so that the corrugations provide consistent flexibility along the working length. Welding operations must produce sound joints with suitable geometry and repeatability.

Multiple welding and forming lines allow the manufacturer to organize production according to product type, size, and processing requirements. This can support repeatable output for standard models such as the ZLR-14 while also providing a foundation for customized sizes and connection configurations. Production quality depends on actual process control, operator training, equipment maintenance, and inspection at each stage.

5.2 Hydrogen Furnace Processing

The company also operates two uninterrupted solid melting hydrogen furnace production lines. Furnace processing can be important for material preparation and the production of components requiring controlled thermal treatment. A hydrogen atmosphere may be used in certain metallurgical processes to support a controlled environment and influence surface quality, depending on the specific equipment and material procedure.

Controlled furnace capability can strengthen manufacturing independence and process consistency. It may help the company manage material-related operations internally rather than relying entirely on external processing. As with all industrial equipment, the value of the furnace system depends on operating discipline, temperature control, atmosphere management, maintenance, and inspection records.

5.3 Material Analysis

The company identifies a direct-reading spectrometer for metal material analysis among its testing equipment. Material analysis is important for products made from stainless steel and other engineered metals. Verifying material composition can help confirm that incoming materials correspond to the intended specification and can support traceability in production.

For a metal hose, material composition affects corrosion resistance, forming behavior, weldability, strength, and service performance. A material analysis system provides a practical tool for identifying alloy composition and supporting more reliable raw-material control. This is especially valuable when the product is used in gas applications where the performance of the metal components is directly related to long-term safety and durability.

5.4 Flow and Tightness Testing

The company also lists flow tightness testers among its testing equipment. Tightness testing is directly relevant to gas hose production. It can help identify leakage caused by defects in the bellows, welds, connectors, gasket interfaces, or assembly operations.

Testing should be integrated into a broader quality process rather than viewed as the only quality control activity. Incoming material inspection, forming checks, weld inspection, dimensional verification, assembly inspection, and final testing all contribute to product reliability. A systematic approach is particularly important for gas connection products because even a small leak can have serious consequences.

5.5 Quality Management and Certifications

The company states that it implements the ISO9000:2008 quality management system. A quality management framework can help organize procedures for purchasing, production, inspection, document control, corrective action, and customer service. The effectiveness of such a system depends on how consistently it is applied in daily operations.

The company also holds a Special Equipment Manufacturing License issued in the People’s Republic of China for pressure pipelines and has EU CE certification testing reports. These credentials and reports indicate experience with regulated equipment and conformity-related processes. Buyers should request current documentation relevant to the exact product, configuration, market, and intended application before placing an order.

Membership in the China Urban Gas Association further reflects the company’s participation in the gas equipment sector. Combined with its research, production, testing, and service resources, this industry involvement supports the development of products intended for gas pipelines, appliance connections, and related energy equipment applications.

Metal-wrapped stainless steel corrugated gas hose ZLR-14

6. Quality Control from Raw Material to Finished Hose

A dependable hose begins with controlled raw materials. Stainless steel strip, wire, connectors, gaskets, sleeves, and coating materials should be selected according to defined specifications. Material identification and inspection help reduce the risk of using components with unsuitable mechanical or chemical properties.

During forming, the corrugated profile must remain consistent. Uneven waves can affect flexibility, stress distribution, and dimensional accuracy. Forming tools should be maintained, and production personnel should monitor key dimensions. The bellows should also be checked for surface defects, cracks, wrinkles outside the intended profile, and signs of forming damage.

Welding quality is another important control point. Welds should be visually examined and evaluated according to the applicable internal and external requirements. A sound weld should have appropriate penetration, continuity, and surface condition. Poor welding can create a leak path or reduce the mechanical integrity of the hose.

The braiding process must provide suitable coverage and tension. If the stainless steel mesh is too loose, it may not provide adequate reinforcement. If it is too tight or uneven, it may interfere with hose flexibility or create localized stress. Consistent braiding is therefore important to the balance between strength and movement.

The PVC coating should be applied evenly and checked for bubbles, gaps, cuts, exposed metal, and adhesion problems. The coating should not obstruct the connector or interfere with gasket seating. At the assembly stage, the flange connector, sleeve, nut, and gasket must be correctly positioned and securely integrated with the hose body.

Final inspection should include dimensional checks, visual examination, connector verification, and tightness testing. Depending on the customer’s requirements and the intended market, additional tests may include pressure testing, bending evaluation, fatigue testing, material verification, and packaging inspection. Appropriate records help support traceability and corrective action when necessary.

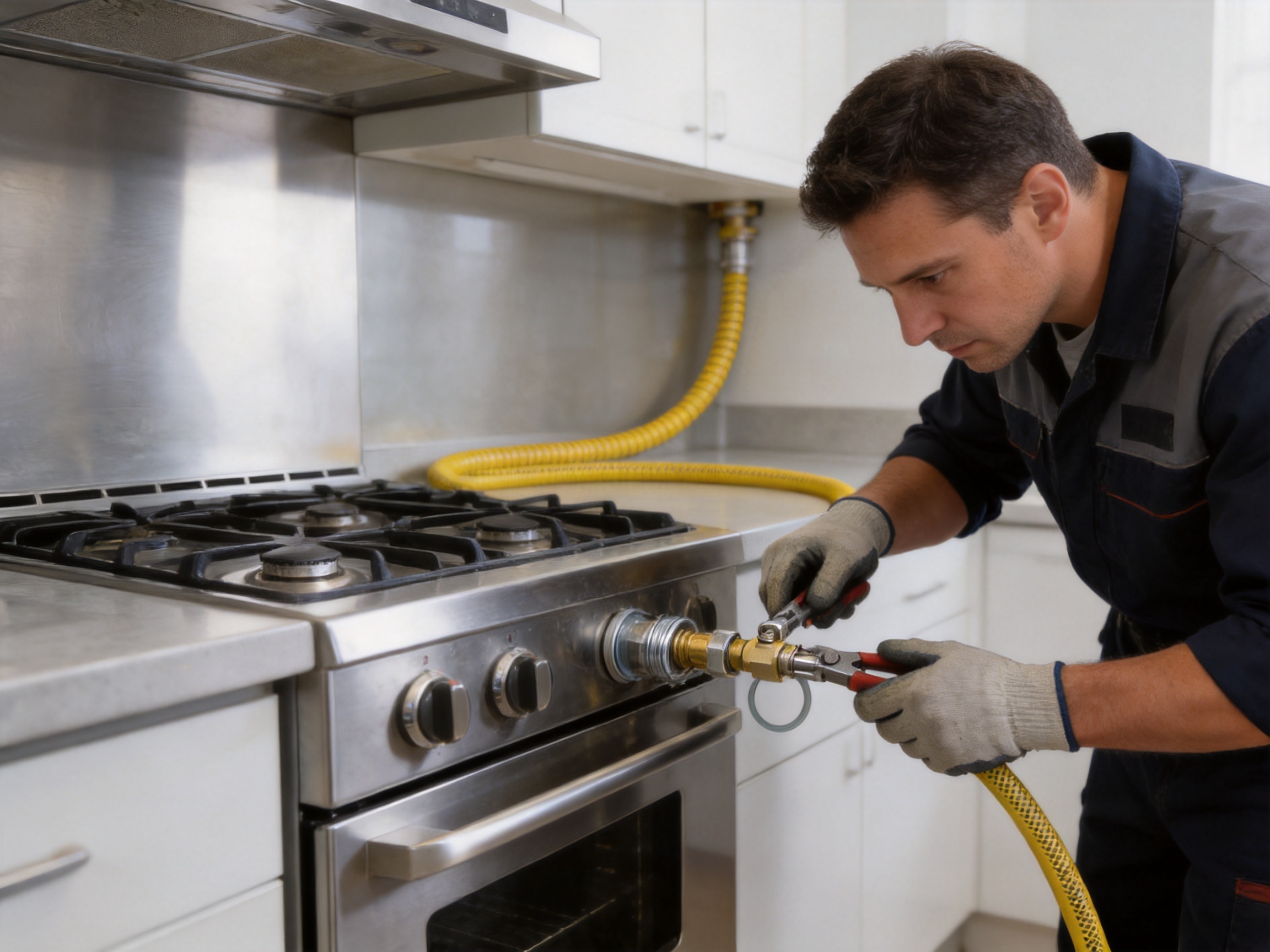

7. Installation Guidance and Best Practices

7.1 Confirm Compatibility Before Installation

Before installing the ZLR-14, confirm the gas type, appliance requirements, nominal size, thread configuration, connector type, pressure conditions, and local installation rules. The G1/2 nut and flange connector must mate with compatible components. A nominal DN10 designation alone does not confirm complete compatibility.

The hose length should be sufficient to create a smooth route without excessive slack. A hose that is too short may be stretched or forced into a sharp bend. A hose that is too long may loop unnecessarily, become trapped behind the appliance, or contact hot surfaces. The available 30 cm to 200 cm range provides selection flexibility, but length should be chosen based on the actual installation.

7.2 Protect the Bend and Connection Areas

The hose should be bent gradually rather than folded. Sharp bends can concentrate stress in the corrugations and place side loads on the connectors. The connection ends should remain naturally aligned with the appliance inlet and gas outlet. The hose should not be twisted while the nut is being tightened.

Do not use the hose as a handle, lifting strap, appliance support, or restraint. The appliance should be independently supported. The hose should have enough clearance to prevent crushing, rubbing, or contact with sharp edges. If the route passes through a cabinet opening, the edge should be smooth and suitable for the installation.

7.3 Install the Gasket Correctly

The flat gasket should be clean, undamaged, and correctly seated on the designated sealing surface. The sealing face should be free of dirt, old gasket material, metal chips, and excessive sealant. Unless specifically permitted by the applicable instructions, additional thread sealant should not be used on a connection that seals through a flat gasket.

Over-tightening can damage the gasket, distort the connector, or place excessive stress on the hose end. Under-tightening can produce an inadequate seal. The correct tightening method should follow the appliance manufacturer’s instructions, applicable standards, and professional installation practice.

7.4 Test After Assembly

After installation, the connection must be tested for tightness using an approved method. Open flames must never be used to search for leaks. Qualified installers should follow the test procedure required by local regulations and the gas system operator or authority.

The hose should also be visually inspected after the appliance has been positioned. Confirm that the PVC coating is intact, the stainless steel mesh is not damaged, the hose is not kinked, and the connectors are not under side load. The appliance should be operated only after the installation has passed the required checks.

8. Applications for the ZLR-14

The ZLR-14 is intended for gas appliance connection applications where a flexible, reinforced metal hose is suitable. Potential uses include connections to domestic cooking appliances, commercial gas equipment, heating-related appliances, and other compatible gas-consuming devices. The actual application must comply with product approvals, pressure limitations, appliance requirements, and regional codes.

In residential kitchens, the hose can help connect a gas cooker or other compatible appliance where the outlet and appliance inlet are separated by a short, irregular route. Its flexible structure can simplify positioning behind cabinets or beneath counters, provided that the hose remains accessible and protected.

In commercial kitchens, equipment may be moved for cleaning or maintenance more frequently than residential appliances. A flexible connection can support controlled access, although the hose must be protected from hot surfaces, grease accumulation, impact from carts, and repeated movement beyond its design capability.

In light industrial or utility environments, the stainless steel mesh can provide useful reinforcement where vibration and mechanical contact are more likely. The suitability of the product should be confirmed through a technical review, particularly if the application involves elevated temperatures, high pressures, aggressive chemicals, outdoor exposure, or continuous mechanical cycling.

9. Why Manufacturing Integration Matters to Buyers

When purchasing gas hoses, buyers often focus on size, price, and delivery time. These factors are important, but manufacturing integration is equally significant. A supplier that combines product development, metal processing, welding, forming, assembly, inspection, and customer service can provide better coordination across the product lifecycle.

Integrated manufacturing can simplify communication when a buyer needs a modification. For example, a customer may require a different length, connector arrangement, coating color, packaging format, label, or private specification. A manufacturer with internal engineering and production resources may be better positioned to evaluate the request and move it into production.

It can also improve issue resolution. If a customer reports a dimensional or assembly concern, the supplier can trace the issue through material records, forming operations, welding procedures, braiding, coating, and final testing. This type of feedback loop is more difficult when every stage is separated among unrelated vendors.

Zhejiang Zhenlong Energy Equipment Technology Co., Ltd. describes itself as an industry-and-trade integrated company with a strong research, design, and production team. Its product range includes metal hoses, natural gas pipelines, plumbing fittings, sanitary ware, valves, plastic products, and hardware. This broad portfolio provides experience across connected piping and fluid-control products.

The company’s location in Yuyao, Zhejiang, places it within a major manufacturing region with access to industrial supply chains, metalworking resources, component producers, logistics services, and engineering labor. Its stated factory scale and production equipment support both standard product manufacturing and potential OEM or ODM cooperation.

10. OEM and ODM Potential

Gas appliance manufacturers, distributors, engineering contractors, and private-label brands may require products that differ from a standard catalog configuration. The ZLR-14 platform can provide a starting point for discussions about custom length, packaging, identification, connection arrangements, coating requirements, and production quantities.

OEM cooperation typically requires clear technical documentation. Buyers should provide drawings, dimensional requirements, connector details, gas type, operating pressure, temperature range, service environment, approval requirements, packaging expectations, and inspection criteria. A well-defined specification reduces misunderstandings and makes sample approval more efficient.

ODM cooperation may involve a broader development process in which the manufacturer contributes design recommendations, component selection, tooling, testing, and production planning. The company’s stated R&D and manufacturing capabilities can support this type of cooperation, subject to technical review and contract requirements.

For safety-related products, customization should never remove essential testing or weaken the connection design. Changes to bellows dimensions, material, braid coverage, connector geometry, gasket composition, or coating can affect performance. Each modified configuration should be evaluated as its own product rather than assuming that the performance of the standard ZLR-14 automatically applies.

11. Maintenance, Inspection, and Replacement

Flexible gas hoses should be inspected regularly according to local rules and the appliance manufacturer’s maintenance schedule. Look for cuts, cracking, discoloration, bulging, flattened sections, damaged braid, exposed metal, corrosion, loose connections, and signs of contact with heat or sharp edges.

The hose should be replaced if it has been exposed to fire, severe overheating, significant impact, chemical attack, crushing, or unauthorized modification. A hose should also be replaced if the gasket is damaged or if the connection cannot be restored to a reliable leak-free condition.

Do not attempt to repair a damaged bellows, braid, coating, or connector by welding, clamping, taping, or applying an unapproved sealant. Gas connection products are engineered assemblies. Field repairs can change the pressure boundary, sealing geometry, and mechanical behavior.

During appliance servicing, avoid pulling the appliance by the hose. If the appliance must be moved, close the gas supply and use qualified personnel. After any disconnection or reconnection, the gasket and sealing surfaces should be inspected and the system should be tested before returning the appliance to service.

12. Product Selection Checklist

When specifying the ZLR-14, buyers should review several technical and commercial points. First, confirm that the DN10 size and G1/2 connection arrangement match the equipment. Second, select a length that allows smooth routing without excessive slack. Third, confirm the gas type, operating pressure, and temperature conditions.

Next, evaluate the installation environment. Consider humidity, cleaning chemicals, outdoor exposure, vibration, heat, abrasion, restricted space, and possible contact with other materials. The stainless steel mesh and PVC coating provide useful protection, but the product must remain within its intended service conditions.

Buyers should also request applicable product specifications, inspection records, material information, certification documentation, packaging details, and sample approval procedures. For large projects, it may be appropriate to establish an inspection plan covering raw materials, dimensions, connection torque, tightness testing, labeling, and batch traceability.

Finally, assess the supplier’s ability to support repeat orders, customized production, technical communication, after-sales service, and issue resolution. A reliable hose supplier should be able to discuss both the product and the installation system in which it will be used.

Selection item	Questions to confirm	Why it matters
Size and connection	Is DN10 and the G1/2 nut compatible with the appliance and outlet?	Prevents connection mismatch and installation delays
Length	Will 30 cm to 200 cm provide a smooth, protected route?	Reduces stretching, kinking, and unnecessary loops
Gas service	Is the hose approved or suitable for the intended gas and pressure?	Supports safe and compliant application
Environment	Will the hose encounter heat, moisture, chemicals, vibration, or abrasion?	Helps determine whether the construction is appropriate
Quality documents	Are material, testing, certification, and inspection records available?	Supports procurement review and traceability
Customization	Can the supplier provide required lengths, packaging, or connector variations?	Improves suitability for OEM, ODM, and project orders
After-sales support	Can the manufacturer provide technical assistance and replacement support?	Helps maintain long-term product and installation reliability

13. Frequently Asked Questions

Q1: What is the primary purpose of the ZLR-14?

The ZLR-14 is a metal-wrapped stainless steel corrugated gas hose designed for compatible gas appliance connections. It provides a flexible link between a gas outlet and an appliance while adding mechanical reinforcement through a stainless steel mesh, sleeve, and protective coating.

Q2: What are the main specifications of the product?

The listed product model is ZLR-14, with specification RLB-ZH-S-10X300. It has a DN10 nominal size, an outside diameter of 16 mm, and available lengths from 30 cm to 200 cm. The assembly includes a flat gasket, G1/2 nut, flange connector, stainless steel sleeve, PVC coating, stainless steel mesh, and stainless steel bellows.

Q3: Why does the hose use a corrugated structure?

The corrugated structure provides controlled flexibility. The wave-shaped profile allows the hose to bend and accommodate alignment differences without requiring a rigid pipe route. It is useful in compact installations, but it must still be routed within the manufacturer’s permitted bend and movement limits.

Q4: What does the stainless steel mesh do?

The stainless steel mesh reinforces and shields the corrugated bellows. It helps improve resistance to external pressure, vibration, incidental contact, and mechanical stress. It also contributes to the hose’s overall dimensional stability.

Q5: What is the function of the PVC coating?

The PVC coating provides an additional protective outer layer. It can help reduce abrasion, contact with surrounding surfaces, and exposure to ordinary environmental contamination. It must still be protected from excessive heat, sharp edges, aggressive chemicals, and mechanical abuse.

Q6: Can the ZLR-14 replace all rigid gas pipes?

No. The ZLR-14 is intended for suitable flexible gas appliance connection applications. It should not automatically be used as a replacement for building gas distribution pipework. The application must comply with local codes, appliance instructions, pressure requirements, and professional installation standards.

Q7: Is the hose suitable for every gas appliance?

Suitability depends on the appliance connection, gas type, pressure, temperature, installation environment, and applicable approvals. The product specifications must be compared with the appliance manufacturer’s requirements before installation.

Q8: How should the hose be installed?

The hose should be installed by qualified personnel. Confirm compatibility, select an appropriate length, keep the route smooth, avoid twisting and sharp bends, install the gasket correctly, tighten the connection according to approved instructions, and perform a leak test before use.

Q9: Can thread sealant be used with the connection?

Whether sealant is appropriate depends on the connection design. If the joint seals with a flat gasket, additional thread sealant may not be required and could interfere with correct assembly. Installers should follow the product instructions, appliance requirements, and local regulations.

Q10: How often should the hose be inspected?

Inspection frequency depends on local requirements, appliance instructions, service conditions, and usage. The hose should be checked whenever the appliance is serviced or moved, and it should be replaced if damage, corrosion, overheating, leakage, or severe deformation is found.

Q11: What manufacturing capabilities support the product?

The manufacturer reports 30 welding and forming production lines, two uninterrupted solid melting hydrogen furnace production lines, metal material analysis equipment using direct-reading spectrometers, and flow tightness testing equipment. These capabilities support material control, forming, welding, assembly, and leakage inspection.

Q12: Does the manufacturer support OEM and ODM production?

The company describes itself as a China OEM and ODM manufacturer of metal hoses, corrugated hoses, and pipe fittings. Custom production should be discussed through a technical specification covering dimensions, materials, connectors, testing, packaging, labeling, and certification requirements.

Q13: What documents should commercial buyers request?

Buyers may request product specifications, drawings, material information, inspection reports, tightness test records, certification documents, packaging details, and quality-system information. The exact documentation depends on the destination market and application.

Q14: What should be done if the braid or coating is damaged?

The hose should be removed from service for professional evaluation. Do not repair it with tape, clamps, welding, or unapproved coatings. A damaged gas hose should normally be replaced with a suitable approved assembly.

14. Overall Value Proposition

The Metal-Wrapped Stainless Steel Corrugated Gas Hose ZLR-14 offers a balanced combination of flexibility, mechanical reinforcement, corrosion resistance, compact dimensions, and connection security. Its corrugated stainless steel bellows makes it adaptable to complex installation routes, while the stainless steel mesh provides additional protection against vibration and external pressure.

The inclusion of a PVC coating, stainless steel sleeve, flange connector, G1/2 nut, and flat gasket gives the product a complete connection-oriented structure. Instead of treating the hose as only a flexible tube, the design addresses the hose body, protective layers, and end connections as an integrated assembly.

Compared with rigid pipe, the ZLR-14 can simplify appliance alignment and installation in restricted spaces. Compared with basic polymer hoses, its metal construction and braided reinforcement offer a stronger defense against many mechanical hazards. Compared with an unprotected corrugated tube, its mesh, sleeve, and coating provide additional protection and handling durability.

The manufacturer’s production resources strengthen the product proposition. Research and development, welding and forming lines, furnace processing, material analysis, tightness testing, quality management, certification experience, and after-sales service create a foundation for consistent supply and customized cooperation.

For distributors, appliance manufacturers, engineering contractors, and industrial buyers, the ZLR-14 can serve as a practical solution for compatible gas appliance connections requiring flexibility and robust construction. The final performance of any gas hose depends on correct product selection, professional installation, proper testing, and regular inspection. When these conditions are met, the ZLR-14 provides a dependable and adaptable connection option for demanding gas service environments.

15. Conclusion

The ZLR-14 is designed to solve a common challenge in gas appliance installation: how to create a connection that is flexible enough for practical routing while remaining strong, protected, and resistant to service stresses. Its stainless steel corrugated bellows provides bending capability, the stainless steel mesh adds reinforcement, the PVC coating improves external protection, and the connector assembly supports secure attachment and sealing.

Its DN10 specification, 16 mm outside diameter, and 30 cm to 200 cm length range provide useful configuration flexibility. At the same time, the product should always be selected and installed according to the specific appliance, gas system, regulations, and environmental conditions.

Behind the product is a manufacturer with integrated energy-equipment capabilities, extensive welding and forming resources, furnace production lines, material analysis equipment, tightness testing systems, quality-management experience, and OEM and ODM production potential. These strengths are important for customers who require not only a single hose, but also reliable technical support, repeatable quality, and long-term supply capability.

For applications that require a reinforced flexible gas connection, the Metal-Wrapped Stainless Steel Corrugated Gas Hose ZLR-14 represents a practical combination of engineering flexibility, stainless steel durability, protective construction, and manufacturing support.

References

1. Product specification information for Metal-Wrapped Stainless Steel Corrugated Gas Hose ZLR-14, including model, size, construction, components, and available length.

2. Manufacturer-provided company profile and production capability information for Zhejiang Zhenlong Energy Equipment Technology Co., Ltd.

3. General principles of stainless steel corrugated hose construction, braided reinforcement, flexible connection design, and industrial sealing practice.

4. ISO 9000 series quality management principles and manufacturing process-control concepts.

5. General gas appliance installation, flexible connector inspection, leak-testing, and maintenance practices.

6. General engineering guidance for material identification, welding inspection, dimensional control, and pressure-boundary tightness testing.

Product: Metal-wrapped stainless steel corrugated gas hose ZLR-14
